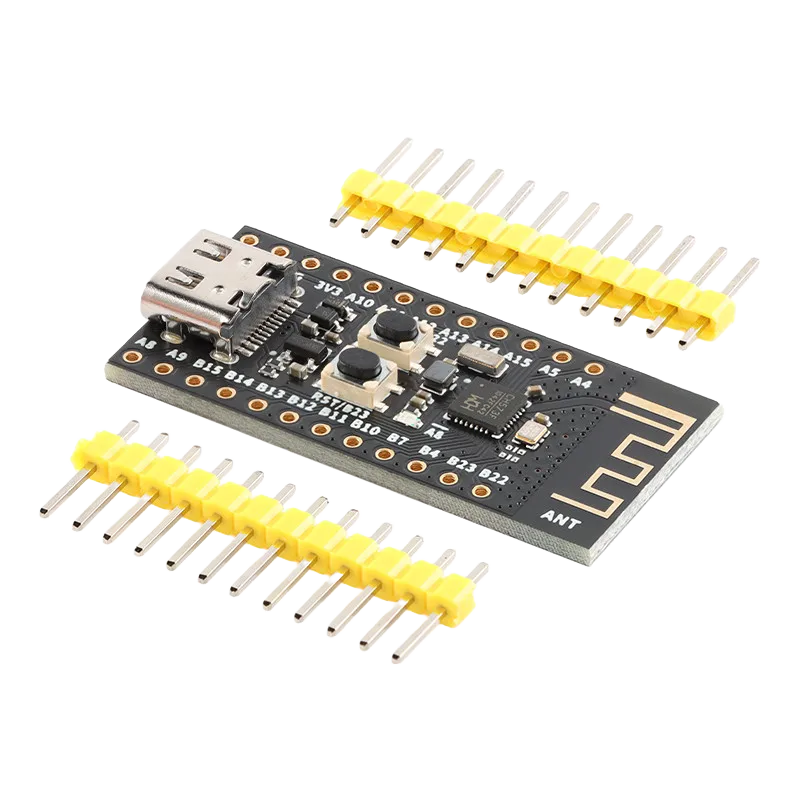

CH573F BLE dev Kit (CH573F)
CH573F RISC-V BLE dev Kit from WeAct Studios.
WCH CH573F BLE 4.2 MCU
60Mhz Max
18KB RAM
448KB ROM
RISC-V3A
4 Timers Timer
10 PWM
4 UART
SPI
I2C
ADC 1 - 8ch USB Device/Host
2.5 - 3.3 VDD
WCH CH573F BLE 4.2 MCU
60Mhz Max
18KB RAM
448KB ROM
RISC-V3A
4 Timers Timer
10 PWM
4 UART
SPI
I2C
ADC 1 - 8ch USB Device/Host
2.5 - 3.3 VDD
CH573F RISC-V BLE dev Kit
CH582F BLE dev Kit (CH582F)
CH582F RISC-V BLE dev Kit from WeAct Studios.
WCH CH582F BLE 5.3 MCU
60Mhz Max
20KB RAM
448KB ROM
RISC-V4A
4 Timers Timer
10 PWM
4 UART
SPI
I2C
ADC 1 - 8ch
2 USB Device/Host
2.5 - 3.3 VDD
WCH CH582F BLE 5.3 MCU
60Mhz Max
20KB RAM
448KB ROM
RISC-V4A
4 Timers Timer
10 PWM
4 UART
SPI
I2C
ADC 1 - 8ch
2 USB Device/Host
2.5 - 3.3 VDD
CH582F RISC-V BLE dev Kit
Massduino UNO r3 compatible (MD328)
Chinese UNO clone that uses the Massduino MD328D MCU.
very similar to the ATmega328p with the following extras:
+5 or 3v3 operation - Switch selectable
10/12/16 bit ADC... as in
very similar to the ATmega328p with the following extras:
+5 or 3v3 operation - Switch selectable
10/12/16 bit ADC... as in
analogRead() // 10bit ADC, Compatible to UNO R3
analogRead_12bits() // 12bit ADC , 130 sps
analogRead_16bits() // 16bit ADC , 125 sps
Will work with UNO boards package except timing is wrong
so delay and baud rates don't work right.
Best to download the ver 5.1 OR BETTER boards support zip.
Installation instructions are included - old fashioned - need
to copy files into a 'hardware' directory in your 'Sketches folder'.
Here is the link to the download...
http://www.inhaos.com/downcount.php?download_id=218
Note there are quite a few "non-official" packages out there that DO NOT work... Make sure you have rev 5.1 or better.
an UNO with a few extras
CH582M BLE dev Kit (CH582M)
CH582M RISC-V BLE Full Up dev Kit .
WCH CH582F BLE 5.3 MCU
The CH582M brings out all I/O pins.
This is a Full-Up Dev kit which brings out all of the pins.
80Mhz Max (defaults to 60 MHz)
20KB RAM
448KB ROM
RISC-V4A
4 Timers Timer
10 PWM
4 UART
1 SPI
I2C
ADC 1 - 8ch
2 USB Device/Host
2.5 - 3.3 VDD
WCH CH582F BLE 5.3 MCU
The CH582M brings out all I/O pins.
This is a Full-Up Dev kit which brings out all of the pins.
80Mhz Max (defaults to 60 MHz)
20KB RAM
448KB ROM
RISC-V4A
4 Timers Timer
10 PWM
4 UART
1 SPI
I2C
ADC 1 - 8ch
2 USB Device/Host
2.5 - 3.3 VDD
CH582M Full-Up RISC-V dev Kit
CH592F BLE dev Kit (CH592F)
CH592F RISC-V BLE dev Kit from WeAct Studios.
WCH CH592F BLE 5.4 MCU
● QingKe 32-bit RISC-V4C core
● Support RV32IMAC instruction set and self-extending instructions
● 26KB SRAM, 512KB Flash, support ICP, ISP and IAP, support OTA wireless upgrade
● Built-in 2.4GHz RF transceiver and baseband and link control, support BLE5.4
Support 2Mbps, 1Mbps
● -95dBm RX sensitivity, programmable +4.5dBm TX power
● Provide optimized protocol stack and application layer API， and support networking
● Built-in Temperature Sensor (TS)
● Built-in RTC, support 2 modes of timing and triggering
● USB2.0 full-speed Host/Device
● 8-channel TouchKey
● 8-channel 12-bit ADC
● 4 UARTs, 1 SPI, 12-channel PWM, 1-channel I2C
● Segment-LCD driver interface. Support 64-point (16*4) LCD panel
● 20 GPIO, 4 of them support 5V signal input
Supports Minimum 1.7V Vdd
● Built-in AES-128 encryption and decryption， unique chip ID
WCH CH592F BLE 5.4 MCU
● QingKe 32-bit RISC-V4C core
● Support RV32IMAC instruction set and self-extending instructions
● 26KB SRAM, 512KB Flash, support ICP, ISP and IAP, support OTA wireless upgrade
● Built-in 2.4GHz RF transceiver and baseband and link control, support BLE5.4
Support 2Mbps, 1Mbps
● -95dBm RX sensitivity, programmable +4.5dBm TX power
● Provide optimized protocol stack and application layer API， and support networking
● Built-in Temperature Sensor (TS)
● Built-in RTC, support 2 modes of timing and triggering
● USB2.0 full-speed Host/Device
● 8-channel TouchKey
● 8-channel 12-bit ADC
● 4 UARTs, 1 SPI, 12-channel PWM, 1-channel I2C
● Segment-LCD driver interface. Support 64-point (16*4) LCD panel
● 20 GPIO, 4 of them support 5V signal input
Supports Minimum 1.7V Vdd
● Built-in AES-128 encryption and decryption， unique chip ID
CH592F RISC-V BLE dev Kit
CH583M BLE dev Kit (CH583M)
CH583M RISC-V BLE Full Up dev Kit .
WCH CH582F BLE 5.3 MCU
The CH583M offers the complete range of peripherals of the CH58x family
as well as bringing out all I/O pins.
This is a Full-Up Dev kit which brings out all of the pins.
80Mhz Max (defaults to 60 MHz)
20KB RAM
448KB ROM
RISC-V4A
4 Timers Timer
10 PWM
4 UART
2 SPI
I2C
ADC 1 - 8ch
2 USB Device/Host
2.5 - 3.3 VDD
WCH CH582F BLE 5.3 MCU
The CH583M offers the complete range of peripherals of the CH58x family
as well as bringing out all I/O pins.
This is a Full-Up Dev kit which brings out all of the pins.
80Mhz Max (defaults to 60 MHz)
20KB RAM
448KB ROM
RISC-V4A
4 Timers Timer
10 PWM
4 UART
2 SPI
I2C
ADC 1 - 8ch
2 USB Device/Host
2.5 - 3.3 VDD
CH583M Full-Up RISC-V dev Kit
26 pin Cobbler (Cobbler26)
26pin ribbon cable included..
Breadboard sold separately.
Breadboard sold separately.
GPIO bus to Breadboard adapter
Arduino Nano compatible (NanoV3)
- Atmel Atmega328P-AU MCU.
- Male Pins soldered in (only on "mini").
- Bootloader installed.
- Operating Voltage（logic level）：5V
- 14 Digital input / output ports: TX RX D2-D13
- 8 analog inputs ports:A0 ~ A7
- 6 PWM ports:D3, D5, D6, D9, D10, D11
- 1 TTL level serial transceiver port - RX / TX
- Supports USB upload and Power.
- External power from 5V ~ 12V DC
- May be powered by 9V battery.
Arduino Nano V3 compatible
9V Power Cable Bare (9Vclip)
9V Battery Power Cable
with Bare Leads
with Bare Leads
9V Power Cable with Bare Leads
Out of Stock
CAD$0.45
9V Cable with Jack (9Vbarrel)
9V Battery Power Cable
with Barrel Jack for Arduino Uno
with Barrel Jack for Arduino Uno
9V Power Cable for Arduino Uno
USB Cables (USBcable)
various cables...
"micro" is typically used for the Nano32 - 1m long
"mini" is typical for the "normal" Nano - 1m long
the "A" extension is good for the USBasp - 1m long
NOTE - the micro with switch is POWER-ONLY - no data - NOT for Uploading.. 2m long
- Colours may vary from photo.
"micro" is typically used for the Nano32 - 1m long
"mini" is typical for the "normal" Nano - 1m long
the "A" extension is good for the USBasp - 1m long
NOTE - the micro with switch is POWER-ONLY - no data - NOT for Uploading.. 2m long
- Colours may vary from photo.
Various USB Cables
AT-09 BlueTooth BLE module (AT-09)
AT-09 BlueTooth Rs-232 module for Arduino or Pi
BLE - AT-09 IOS/Android compatible - "AT" commands
BLE - AT-09 IOS/Android compatible - "AT" commands
AT-09 BlueTooth BLE Serial module - IOS
MLT-BT05 BlueTooth BLE module (MLT-BT05)
MLT-BT05 BlueTooth Rs-232 module for Arduino or Pi
BLE - MLT-BT05 IOS/Android compatible - "AT" commands Online Manual
BLE - MLT-BT05 IOS/Android compatible - "AT" commands Online Manual
MLT-BT05 BlueTooth BLE module - IOS/Android
Out of Stock
CAD$5.49
